Description

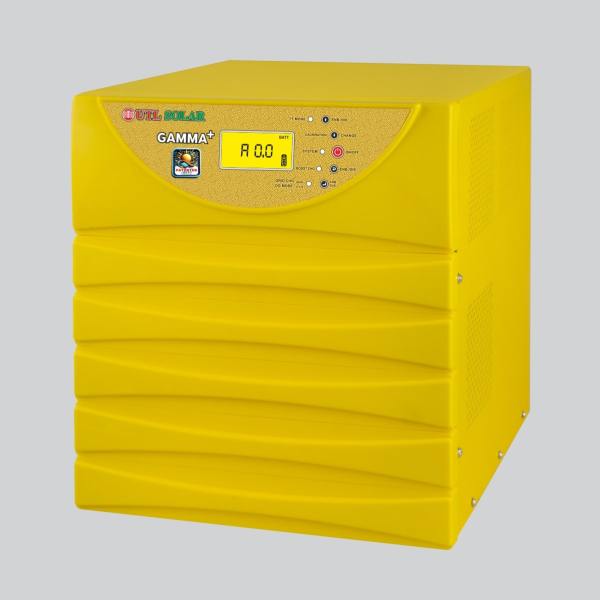

Gamma Plus r-MPPT Solar Inverter 3350/24 Volt (3kVA)

UTL Gamma Plus 3kva 24v MPPT Solar Home Inverter

Gamma+ solar home PCU is a highly efficient, feature rich, and cost effective choice for customers who require an uninterrupted power supply at an affordable cost. It’s an integrated unit that consists of a grid charger, solar inverter, and r-MPPT solar charger.

r-MPPT(exclusively patented by UTL) is an advanced version of the MPPT technology that can extract the maximum power from solar panels to offer 30% more efficiency than the normal home inverters.

Gamma Plus inverter stands out with advanced features like LCD display (for monitoring voltage, current, and solar power generation), multistage charging to maintain battery charging voltage and increase lifespan of the battery), and more.

Along with an appealing design, the Gamma plus inverter is quite easy to install and maintain which makes it a perfect choice for homes, small offices, and shops. The unmatched efficiency of the r-MPPT inverter can even save you enough money to get a UTL Solar Gamma Plus Solar Inverter for Free.

Key features of Gamma Plus Solar Inverter

Pure Sine Wave Output

Provides high quality power that is compatible with all kinds of electronic appliances

Controller based design

Monitors and adjusts the inverter’s performance to ensure efficient and stable power output.

Smart Built-in r-MPPT Charge Controller

Automatically adjusts the voltage to track the maximum power point at which the solar panels operate most efficiently.

Inbuilt LCD Display

Keep a log on the solar power generation, inverter status, charging levels, warnings and more on the screen.

The Gamma+ LCD display is unique

• Includes 4 switches for configuring operational modes like Grid Charger, IT Load, SMF/Tub, and boost charging.
• The display shows battery voltage, charging current, output voltage and frequency, output load percentage, input voltage and frequency, solar voltage, solar current, and solar power consumption.
• All parameters can be easily adjusted manually by the user as per their requirements

Multi stage charging(Bulk, Absorption & Float) and Auto equalization

These stages optimize charging efficiency, maintain battery gravity and temperature, and periodically equalize to enhance backup capacity and overall durability.

Compatible with DG as an input source

The frequency of DG output varies significantly, which is a crucial parameter. In DG enable mode, the system can accept any frequency as the input source frequency.

Compatible with IT Load

IT mode is used for IT loads, which provide protection to IT instruments like computers and printers. In IT mode, the changeover time is minimized to prevent any kind of breakdown in power supply.

Multiple Operating Mode with Priority Selection

Priority for battery charging: Solar→Grid
